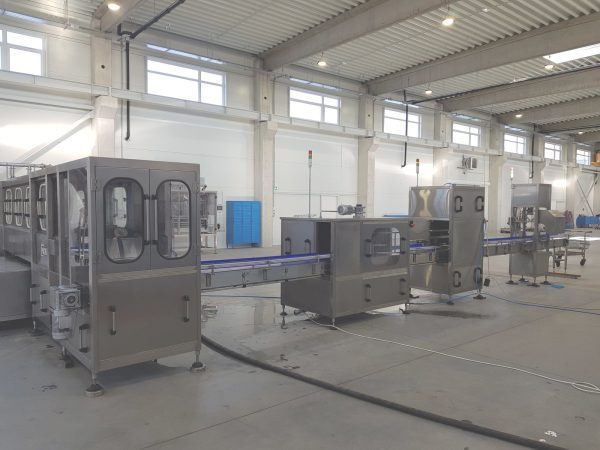

3 and 5 gallon filling line
We offer complete gallon lines (19 liter – 5 gallon & 11 liter – 3 gallon) covering the entire bottling process from used returned ballons, to filled, finished product.
The production line includes cap removal, pressure control, external washing, multi-phase internal rinsing, filling and closing.
Please contact us if you have any question
Description
PRODUCT DESCRIPTION
Properties:
- Nominal output: up to 1200 bottles/hour.
- Filling method: flow meter, overflow filling.
- Capping: ballon plastic press on cap.
- Line components: cap remover-, pressure control-, external washing-, rinser-filler-closer unit.
Main features:
- All parts in contact with the liquid are made of stainless steel (Wnr. 1.4301) or food grade plastic.
- The construction of the machine ensures the reliable operation.
- Low maintenance requirements.
- The machine equipped with an automatic cap feeder.
- Touch screen machine control.
- Optional brand pneumatic and electronic components.
- The filling line is also available by units.
Options:
- Suitability for cleaning and disinfection by CIP system,
- completing the automatic cap feeder with a cap disinfection unit and cap washer,
- cap sleeve unit,
- alkali, acid and peroxide fluid level and concentration control.
